| Specification | Details |
|---|---|
| Type | Semi-Trailer |
| Load Capacity | 40-80t |
| Certification | ISO9001, CCC |
| Wheel Base | 5380mm+1310mm+1310mm |
| Tread | 1840mm |
| Grade | Heavy Duty |
| Types of Suspension Systems | Mechanical Suspension/Air Suspension |
| Shape | Van-type |
| Axle Number | 2/3/4/5 Multi-Axle Customizable |
| Tire Number | 8/12/16/20 |
| Self-dumping | Not Self-dumping |
| ABS Anti-lock Braking System | Optional |
| Material | Steel |
| Condition | New |
| Electrical System | 24 Volt Electrical System. |
| Container Lock Transfer | Optional |
| Suspension | Heavy-Duty Mechanical Suspension |
| King Pin | 50# or 90# |
| Dimensions of Transport Containers | Customizable in 20/40/45/53 Feet |
| Transport Package | Naked Packaging/Miscellaneous Boat |
| Origin | China |
| HS Code | 87164000 |
| Production Capacity | 20000/Year |
| Package Size | 1060.00cm * 2500.00cm * 1600.00cm |
| Package Gross Weight | 15000.000kg |
Our high-performance container transport double semi-trailer is engineered for durability, efficiency, and versatility in logistics, intermodal transport, and heavy-duty cargo delivery projects. Designed with advanced manufacturing technology and robust materials, this semi-trailer ensures smooth towing performance and operational efficiency. Suitable for long-haul and demanding applications, it delivers exceptional reliability in diverse road conditions and working environments.
Heavy Cargo Transport: Safe shipping of maximum-payload for industrial, commercial, or bulk goods.
This double flatbed semi-trailer is specially designed for heavy-duty scenarios! Whether it is port transshipment, long-distance trunk lines or multimodal transport, all can maintain smooth and unobstructed operation. It combines super durability with high operational efficiency, easily handling your most demanding logistics challenges.
Some models can be optionally equipped with a lift-type rotary lock. When idle, it can be retracted below the load-bearing surface to temporarily serve as a regular trailer for transporting steel and equipment. One vehicle can cover multiple types of freight scenarios, and the cost performance is directly maximized.
| Technical Parameters | Details |
|---|---|
| Model | LFC9400CCY |
| Overall Dimensions (mm) | 13000, 12500, 12000, 11500 × 2550, 2500 × 3980, 3950, 3780, 3750, 3580, 3550, 3380, 3350 |
| Cargo Box Dimensions (mm) | 12850, 12350, 11850, 11350 × 2500, 2480, 2470, 2460, 2450, 2430, 2420, 2400, 2380, 2350, 2320, 2300 × 600, 550, 500 |
| Gross Mass (Kg) | 40000 |
| Rated Payload Mass (Kg) | 34200, 33950, 33630 |
| Curb Mass (Kg) | 5800, 6050, 6370 |
| Number of Axles | 3 |
| Tire Quantity | 12 |
| Tire Specification | 11.00R20 12PR, 12R22.5 12PR |
| Kingpin Bearing Capacity | 16000 Kg |
| ABS System | Equipped (Manufacturer: Guangzhou Ruili Kemi Auto Electronics Co., Ltd.; Model: CM2XL-4S/2M) |
| Suspension | Air suspension (Optional lift axle for the first axle, only allowed to be lifted when unloaded) |

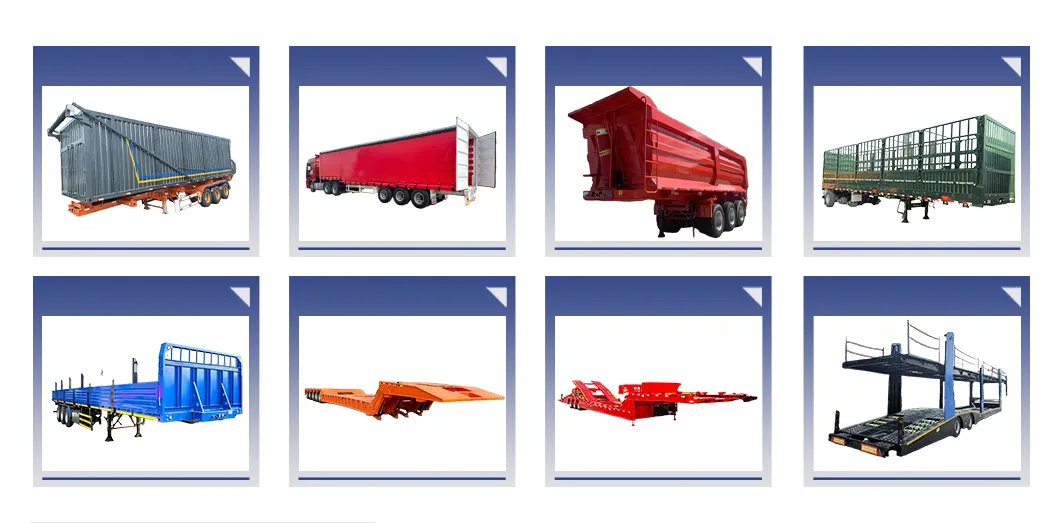

Our company is a comprehensive industrial and trade enterprise integrating semi-trailer & mechanical equipment manufacturing, product design, R&D, sales, and import & export. Our product range is rich, covering container transport semi-trailers, van-type transport semi-trailers, low-bed semi-trailers, tanker semi-trailers, special-purpose semi-trailers, and various mechanical equipment & component parts.
After more than 10 years of development, we have achieved outstanding results in the foreign trade field. Relying on our diverse product matrix and high quality, our business has successfully expanded to Southeast Asia, Central Asia, Africa, Russia, South America and other regions. Currently, we have established long-term and stable cooperative relationships with over 200 agents and overseas customers, and our annual export volume grows steadily. We provide customized solutions, after-sales service and cargo transportation assistance to ensure smooth and efficient cooperation.

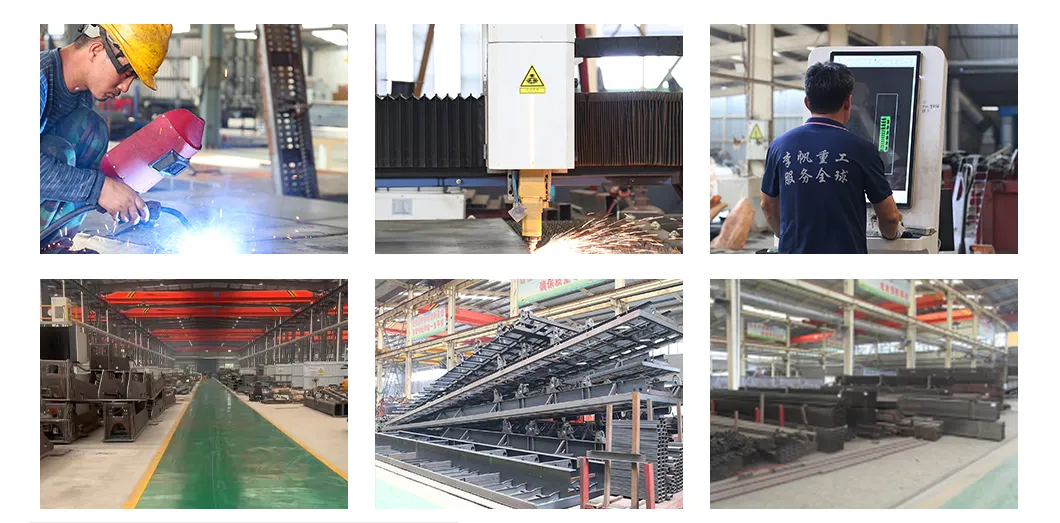

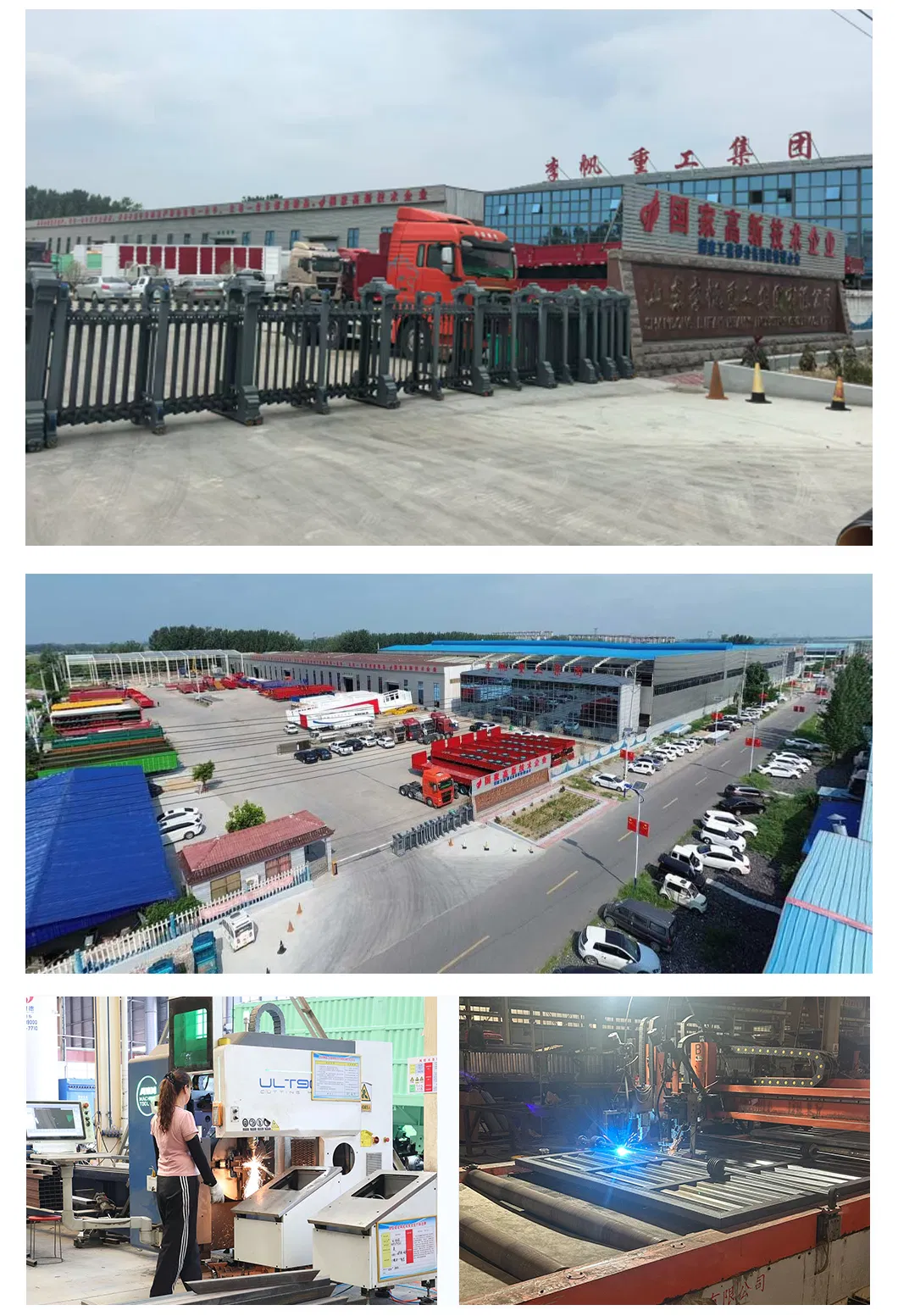

Our company covers over 180,000 m² (including 50,000 m² for production workshops) and has more than 380 employees. Our factory is equipped with advanced production and testing equipment, such as laser cutting machines, robotic welding systems, automatic welders (oxygen-argon-nitrogen tri-gas shielded welding, ensuring no cracks or damage at welds), fully automatic assembly lines (realizing product-level zero error), and a large vehicle through-type sandblasting machine, supporting an annual output of 20,000 units. We hold the qualification for exporting special steel structures, and many of our products have reached top levels via technical appraisal. We hold international certifications like ISO9001 and CCC, along with over 30 patents.
