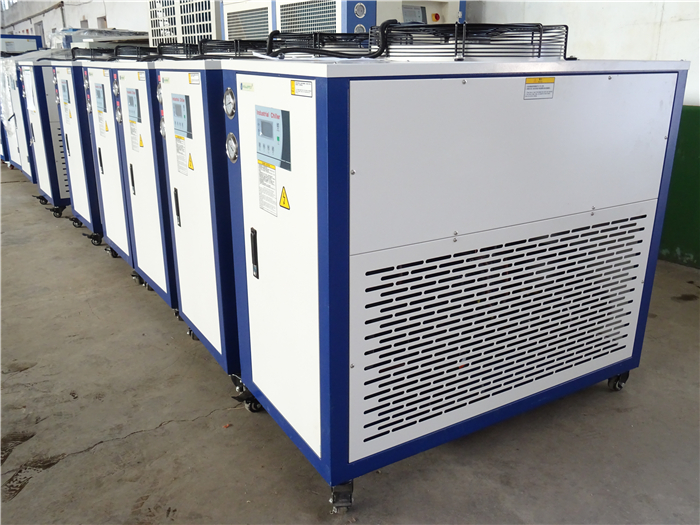

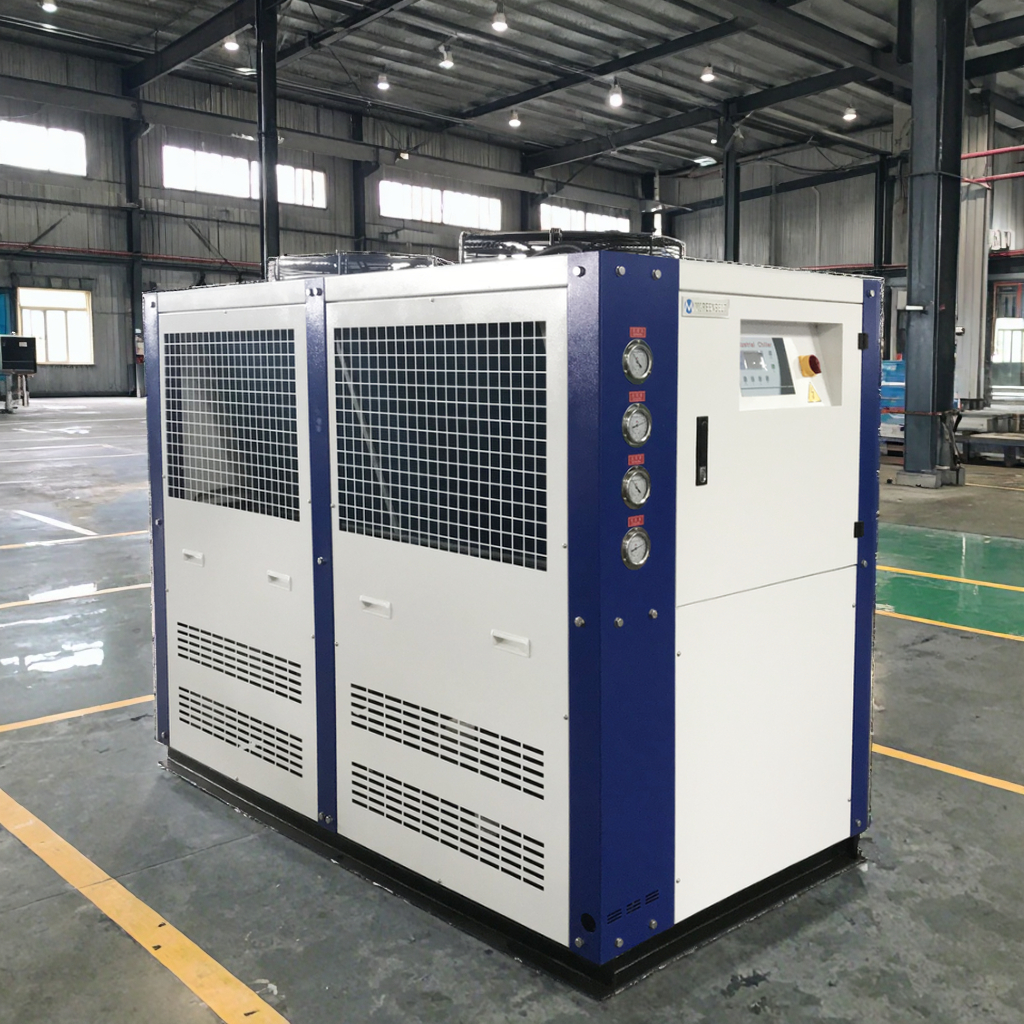

Design of 208V 380V 460V 5BBL 5HP Air Cooled Beer Glycol Chiller

• (1). Electrical waterproof IP55 grade, chiller could be placed outdoor without shelter.
• (2). Design working condition ambient temperature from -20°C degree to +50°C degree.
• (3). Working condition: good air circulation place to discharge the heat.
• (4). Remote and local control available, chiller with stop/off function remote and alarm remote optional.
• (5). Power off - Auto start up turn on function supported.
• (6). Inlet and outlet pipe stainless steel.
• (7). Supply outlet water temperature: -15°C ~ +30°C.

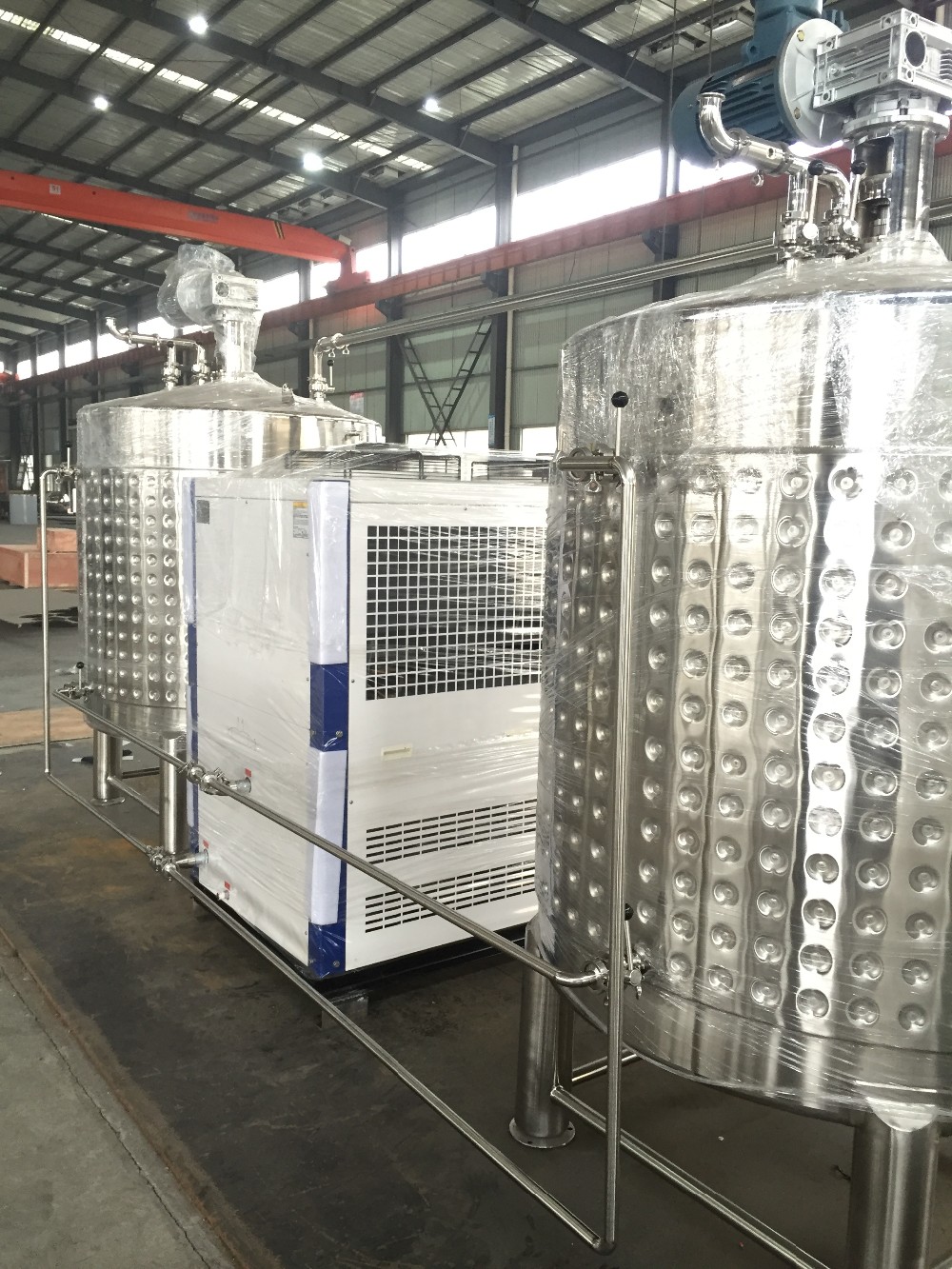

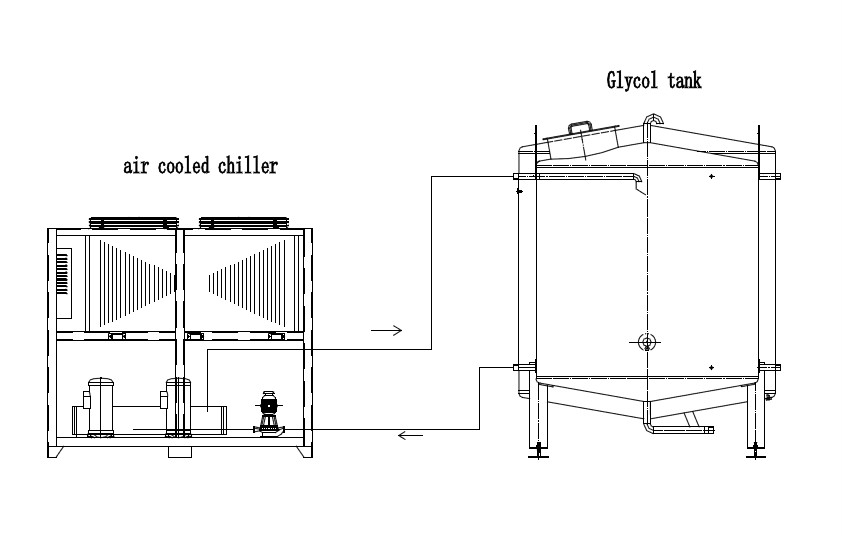

• 1) Glycol chiller applied in brewery is mostly applied to cool glycol tank directly.
• 2) Some glycol chillers come with an inbuilt small-to-large tank, shell and tube, or plate evaporator to cool fermenters or plate wort.

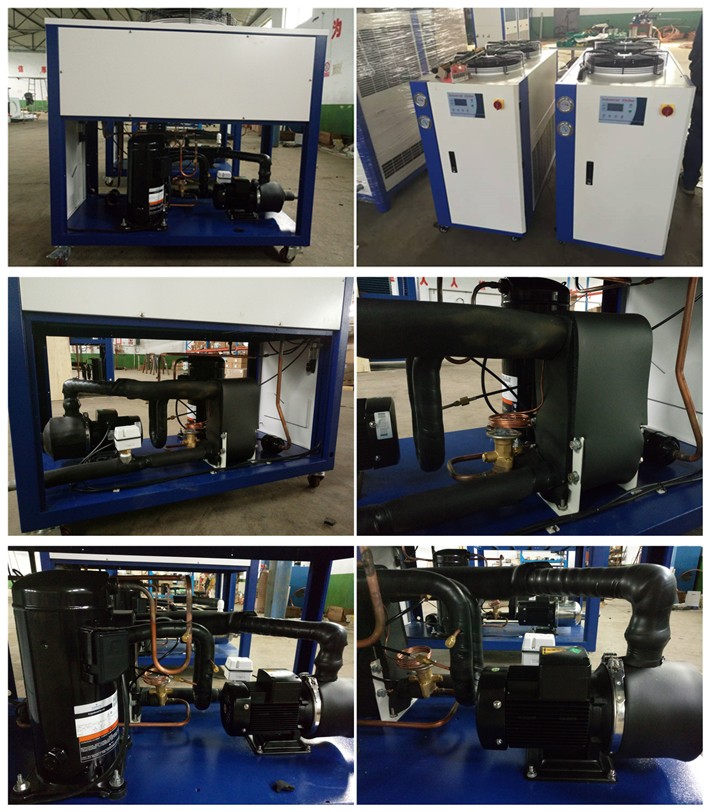

Key Characteristics of the Air Cooled Beer Glycol Chiller

• 1. Imported branded compressor from USA (Copeland), Japan (Panasonic), and Denmark (Danfoss), built-in safety protection, low noise, power-saving, and durability.
• 2. Adopt SCHNEIDER electrical components, featuring stability and long service life.

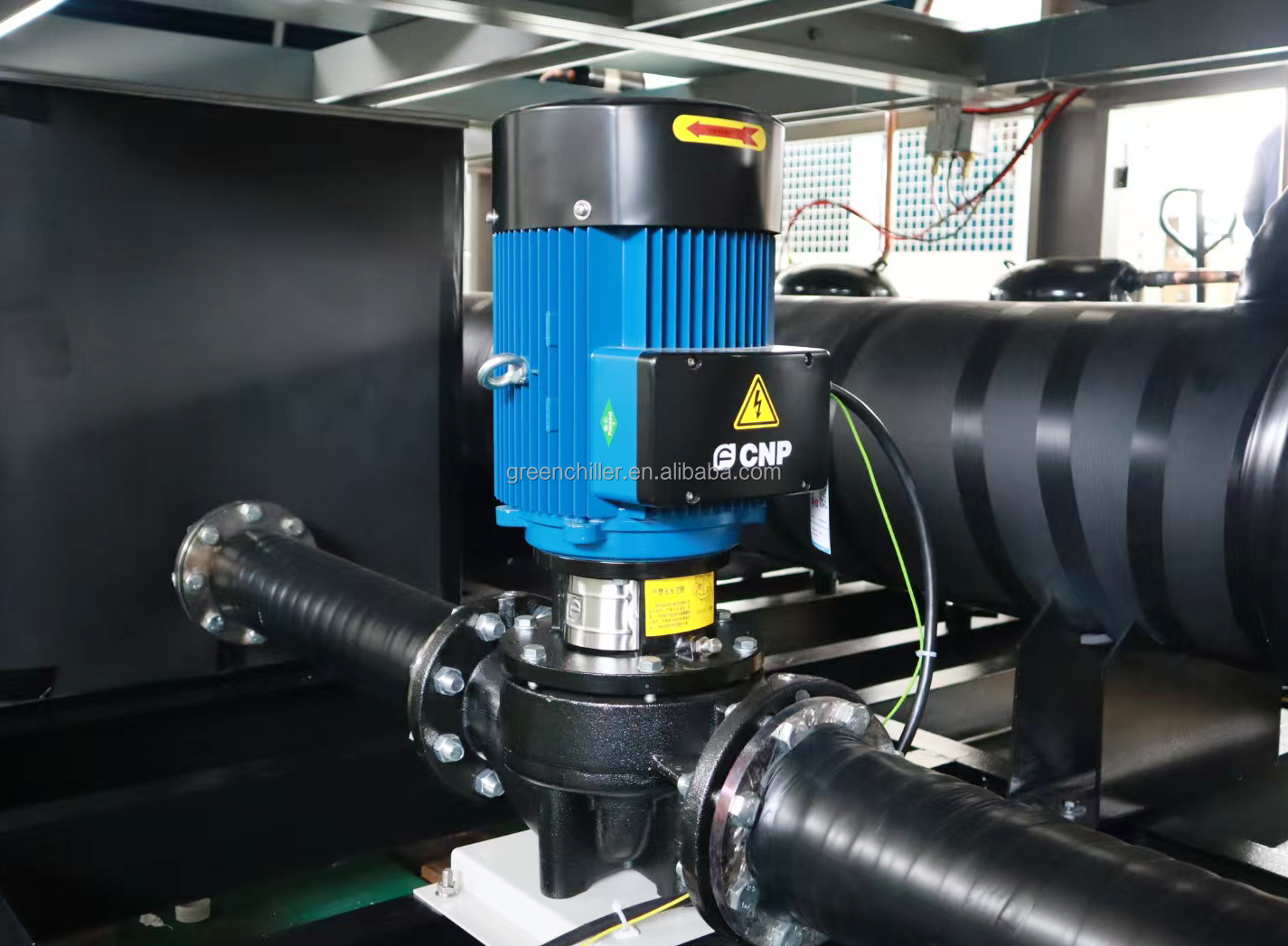

• 3. Italian water pump with big flow, low power to save energy, high efficiency, and durability.

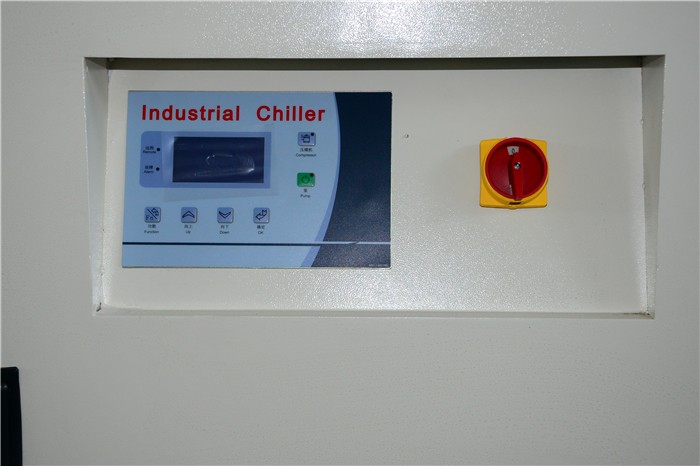

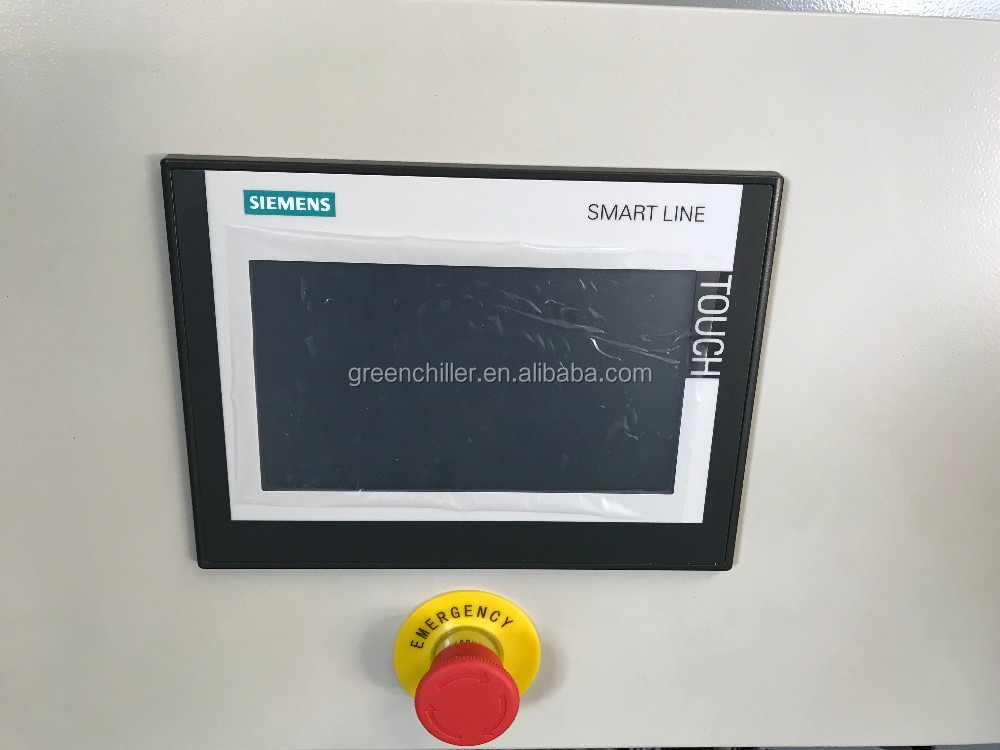

• 4. Imported precise digital temperature controller with LCD display, controlling the water temperature as accurate as ±1℃. Auto test and analysis function by displaying working condition in English for easy operation and monitoring.
• 5. Stainless steel buffer tank is available, and built-in auto filling water devices, convenient for cleaning and maintenance.
• 6. High efficiency shell and tube type evaporator/condenser, to cool and supply chill water to the user side.
• 7. Air cooled industrial chiller equipped with finned copper by the warped and ranked copper pipe, to release the heat into the air to cool down the coolant temperature.
• 8. Optional environmental protection refrigerant R404A, R134a, R407c, R410a.
• 9. Customized chiller with special power supply voltage.
• 10. Outlet glycol/water temperature 0°C to 30°C.

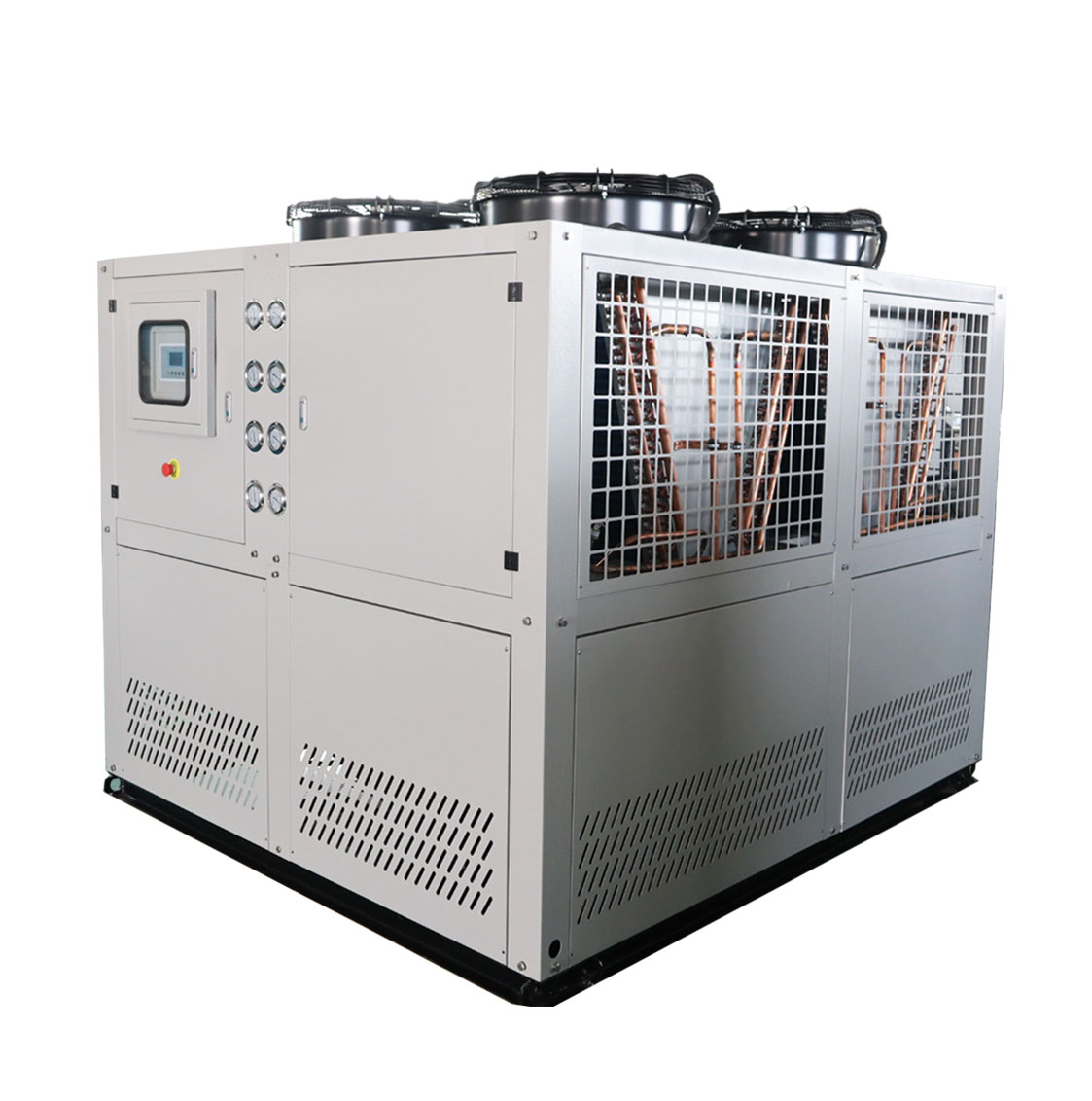

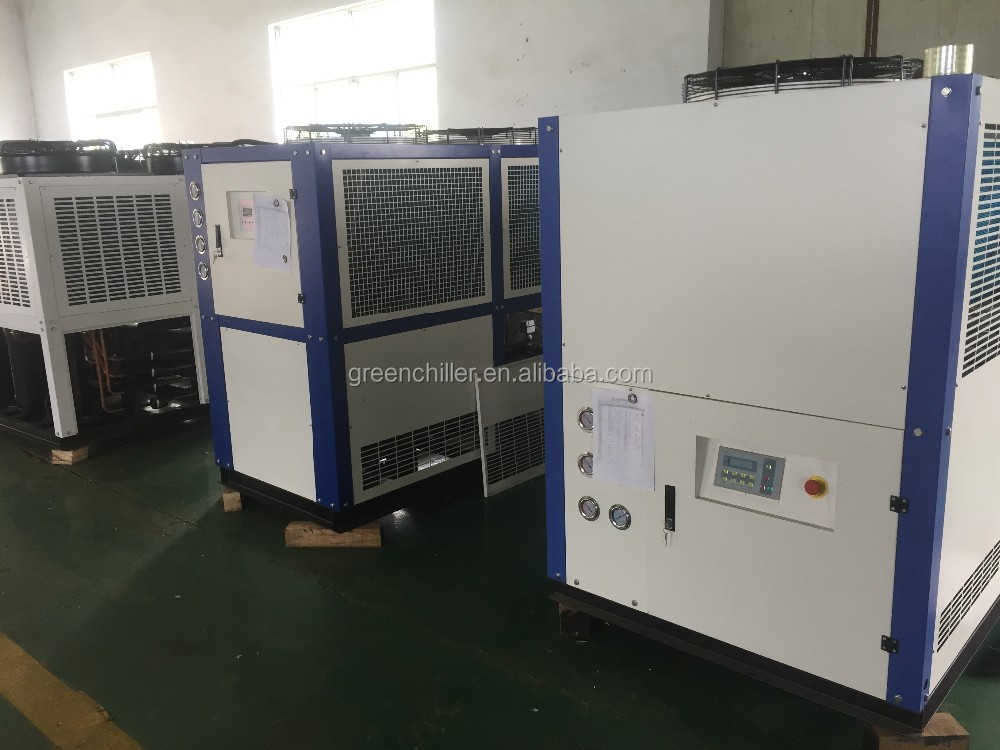

Air Cooled Glycol Chiller Brewery

• 1). 15hp, 20hp, 25hp, 40hp, and 50hp: The most popular evaporator is shell and tube or plate type.
• 2). Temperature range from -10°C to +30°C.
• 3). Each glycol chiller adopts more than 2 units of Copeland/Danfoss/Panasonic compressors, which work together or independently based on the load capacity.

• 1). Small glycol chillers: 3hp, 5hp, 7hp, 8hp, 10hp, 12hp.
• 2). Evaporator options include tank with coil, shell and tube, or plate types.
• 3). Special single-phase or 3-phase, 208-240 volts is available.

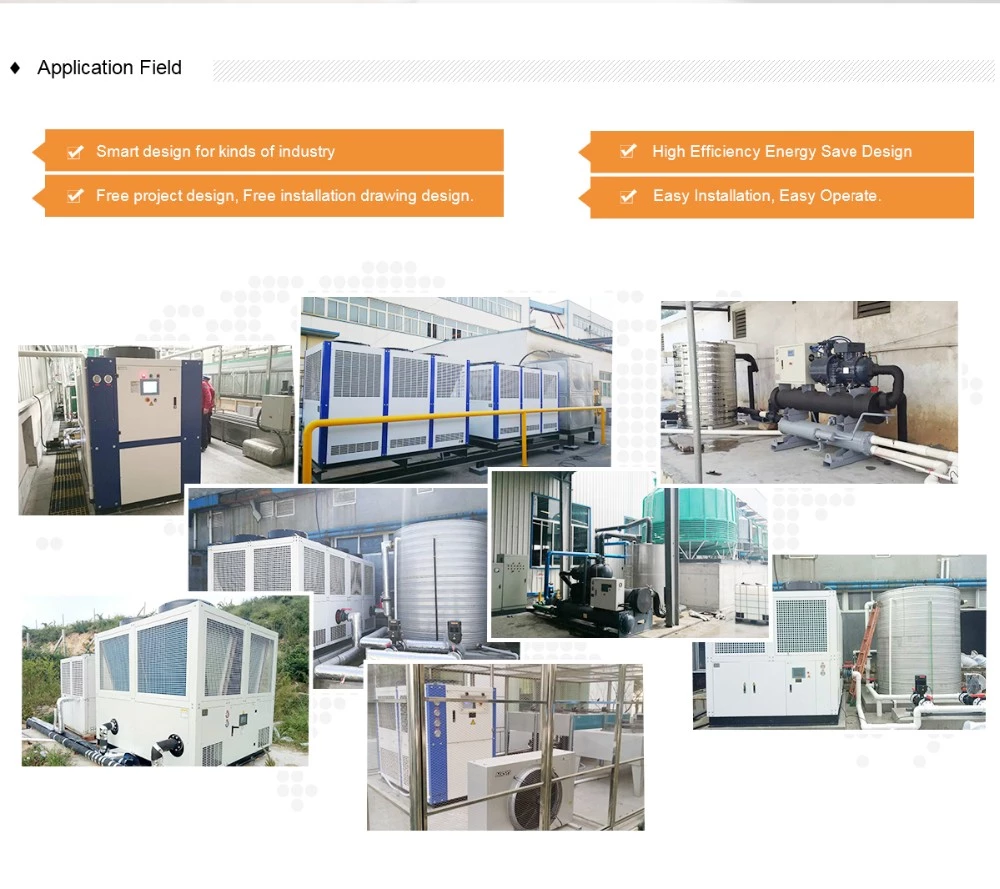

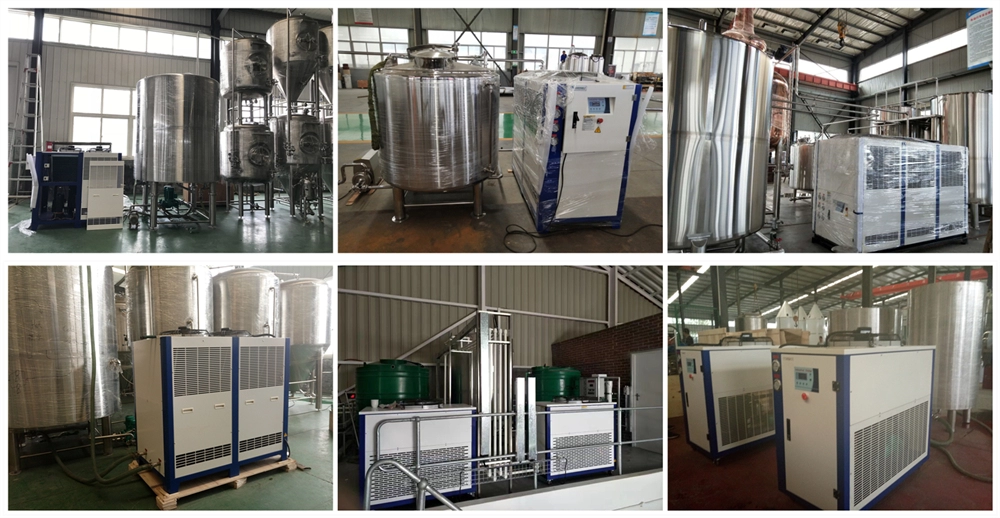

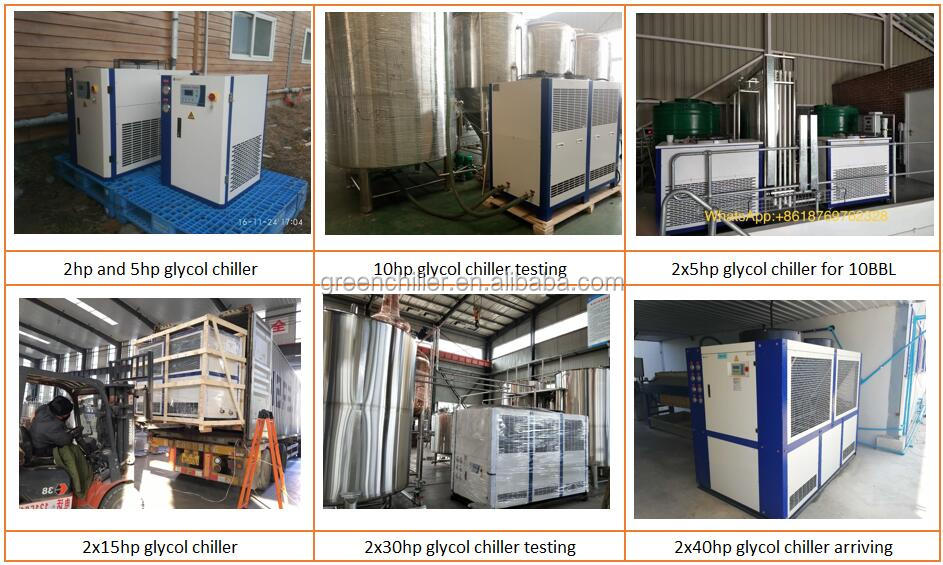

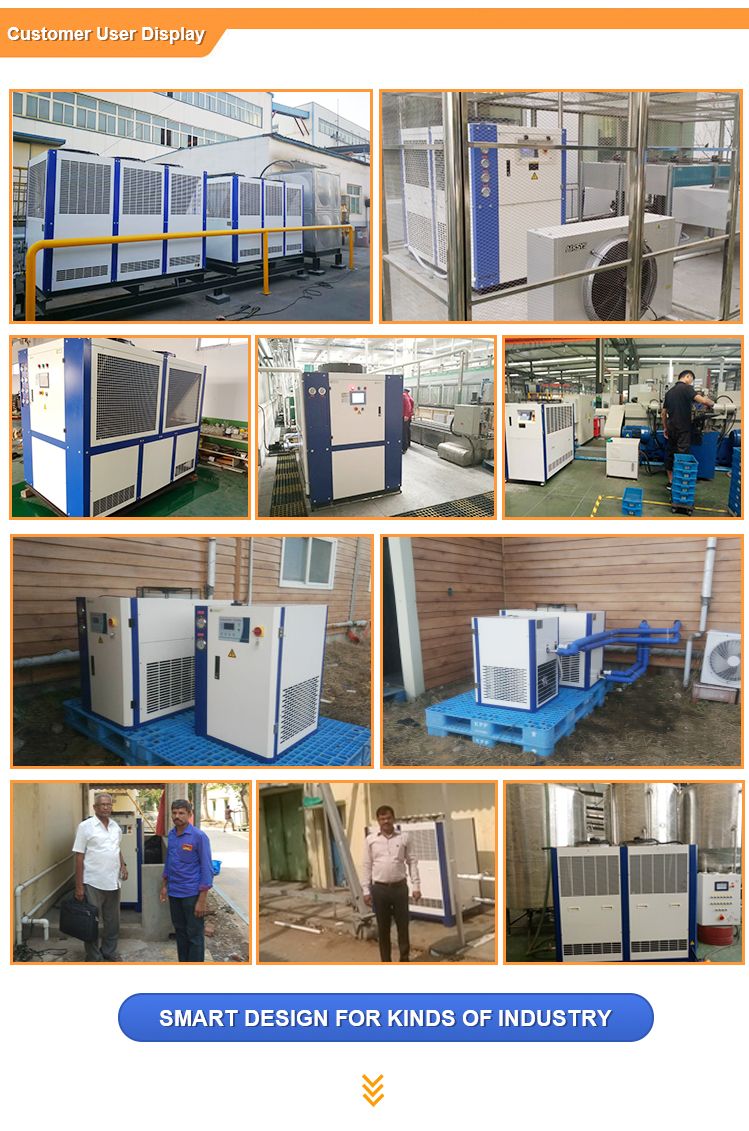

Water Chiller Working Site

This model chiller is popular and a hot seller, exported to end users and trading companies in large quantities.

• All the products are CE certified.
• UL listed parts are adopted for the compressor, pump, fans, and electric system.

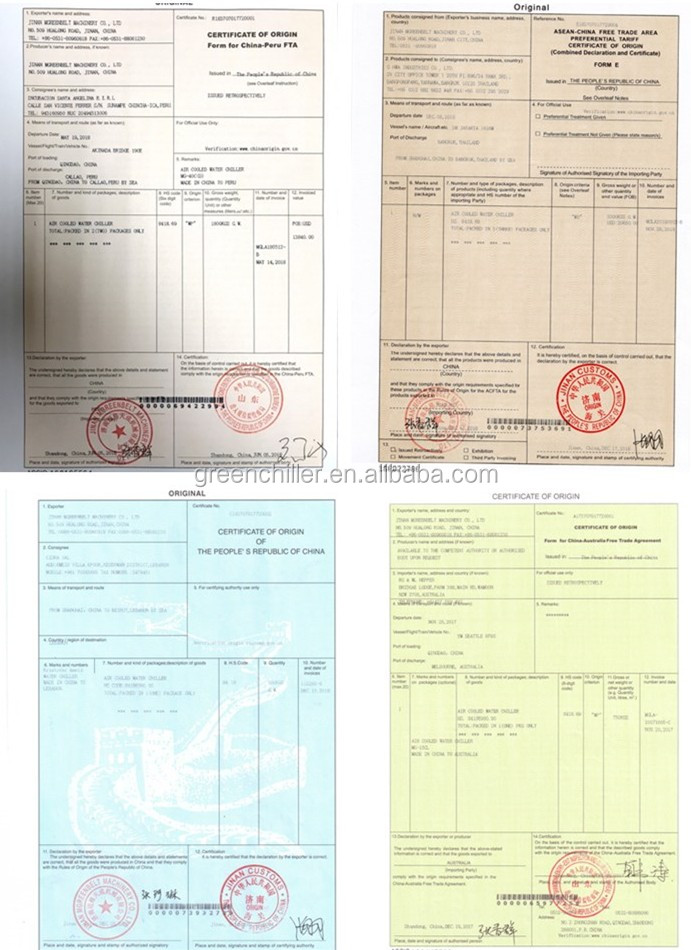

• Provide FORM E, FORM R, FORM A, and C/O for customs clearance.

Service before Order

• (1). Inquiry and consulting support.
• (2). Solution design support.
• (3). Confirm proposal and quote.
• (4). Place order.

After-Sale Service

• * Deal with shipping delivery and issue documents to do customs declaration and clearance.
• * Training how to install the machine, training how to use the machine.
• * Engineers available to service machinery overseas.
• * Lifetime technical support.

Standard plywood case for package, no need for fumigation. Delivery by sea or railway.

The water chiller system is an excellent partner for modernized industry, featuring ease of operation with a reasonable design, high quality, and a complete range of specifications. It can precisely control the exact temperature requested by modernized machinery production, greatly improving production efficiency and product quality.

To meet the needs of different customers, our products specialize in the following main industries:

• Plastic industry use water chiller: different capacity and cooling types; Includes plastic injection machine water chiller, plastic extruder water chiller, plastic blowing water chiller, etc.
• Brewery use glycol chiller: outlet temperature can satisfy 0°C, -5°C, -10°C or much lower based on your need; Includes Beer Chiller, Distillery Chiller, Winery Chiller, etc.
• Chemical industry chiller: the lowest temperature can be -40°C; Chemical and pharmaceutical use chiller, explosion-proof chiller.
• Other industrial equipment working cooling.

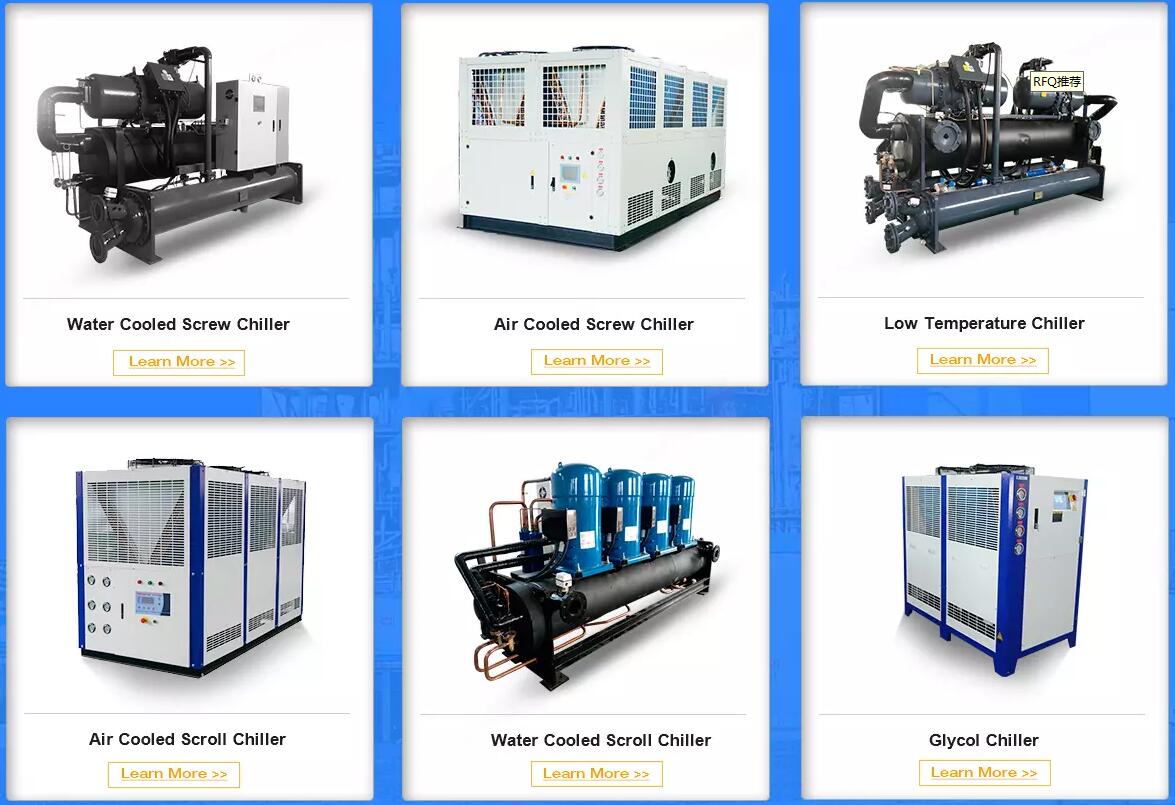

More Water Chiller Range as Follows:

• 1) Chilled outlet water temperature: -35℃ to +35℃
• 2) Cooling capacity: 2.85kw ~ 1750kw (0.8 ton ~ 500 Tons)
• 3) Cooling way: Air cooled and water cooled
• 4) Compressor type: Screw type, Scroll type
• 5) Power supply: 1/3PH - 200V/220V/380V/415V/460V - 50HZ/60HZ
• 6) Refrigerant available: R22 / R407c / R410a / R134a / R404a
