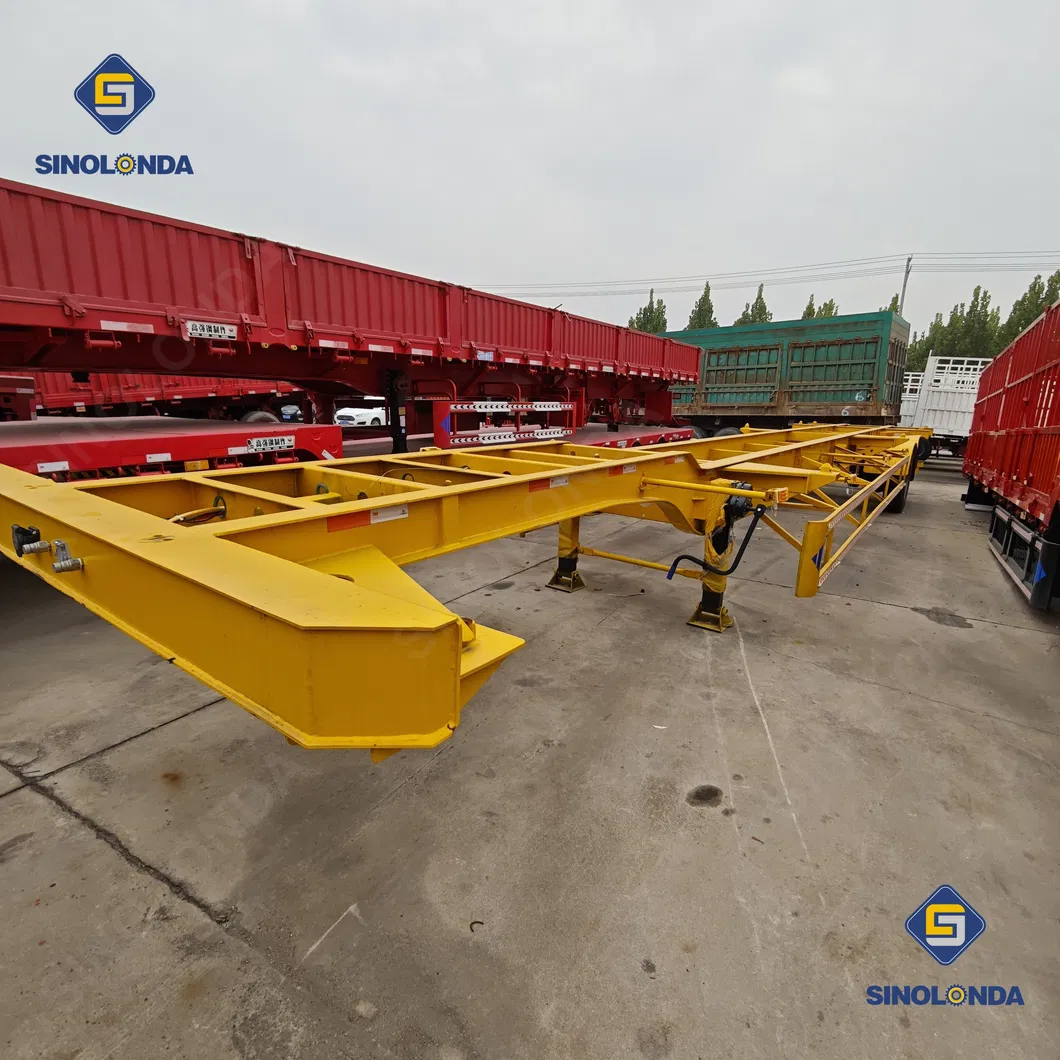

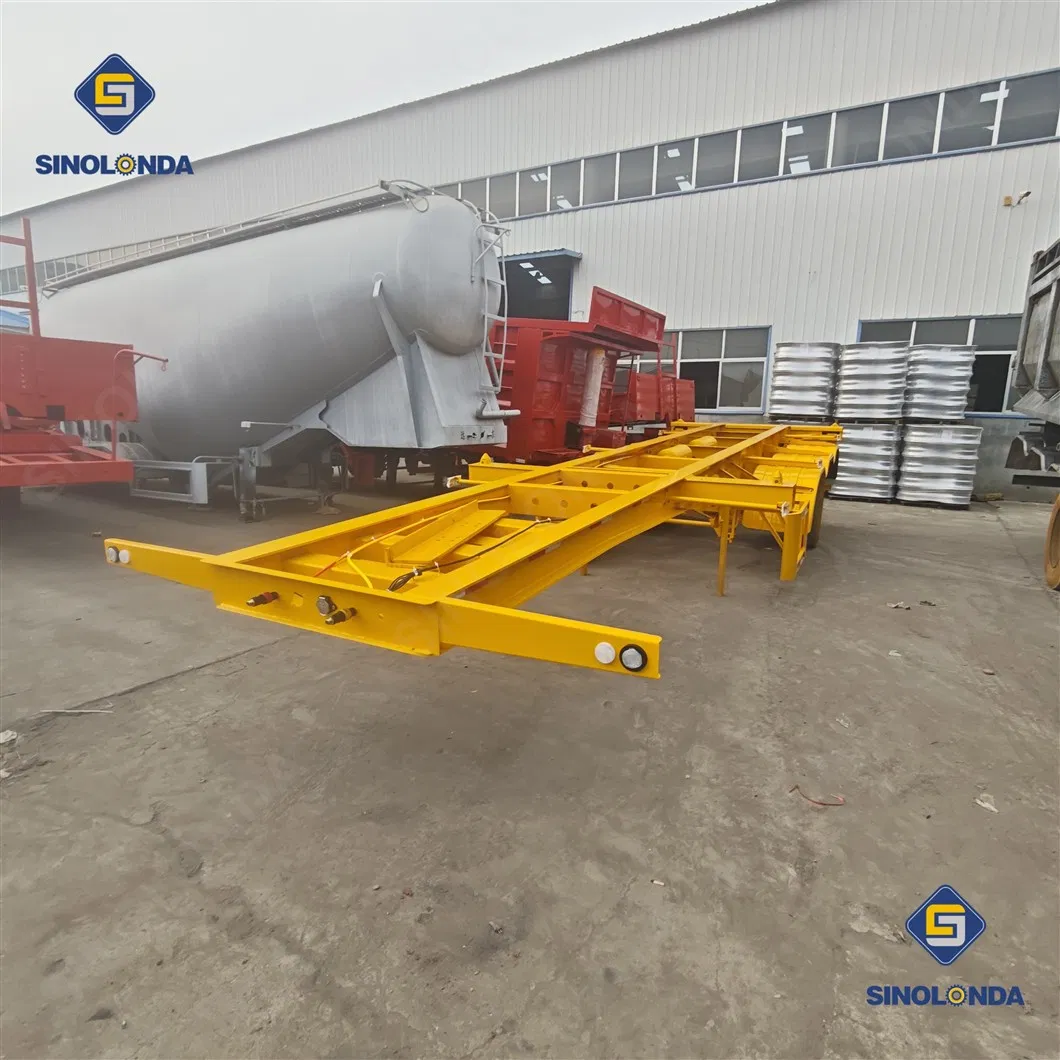

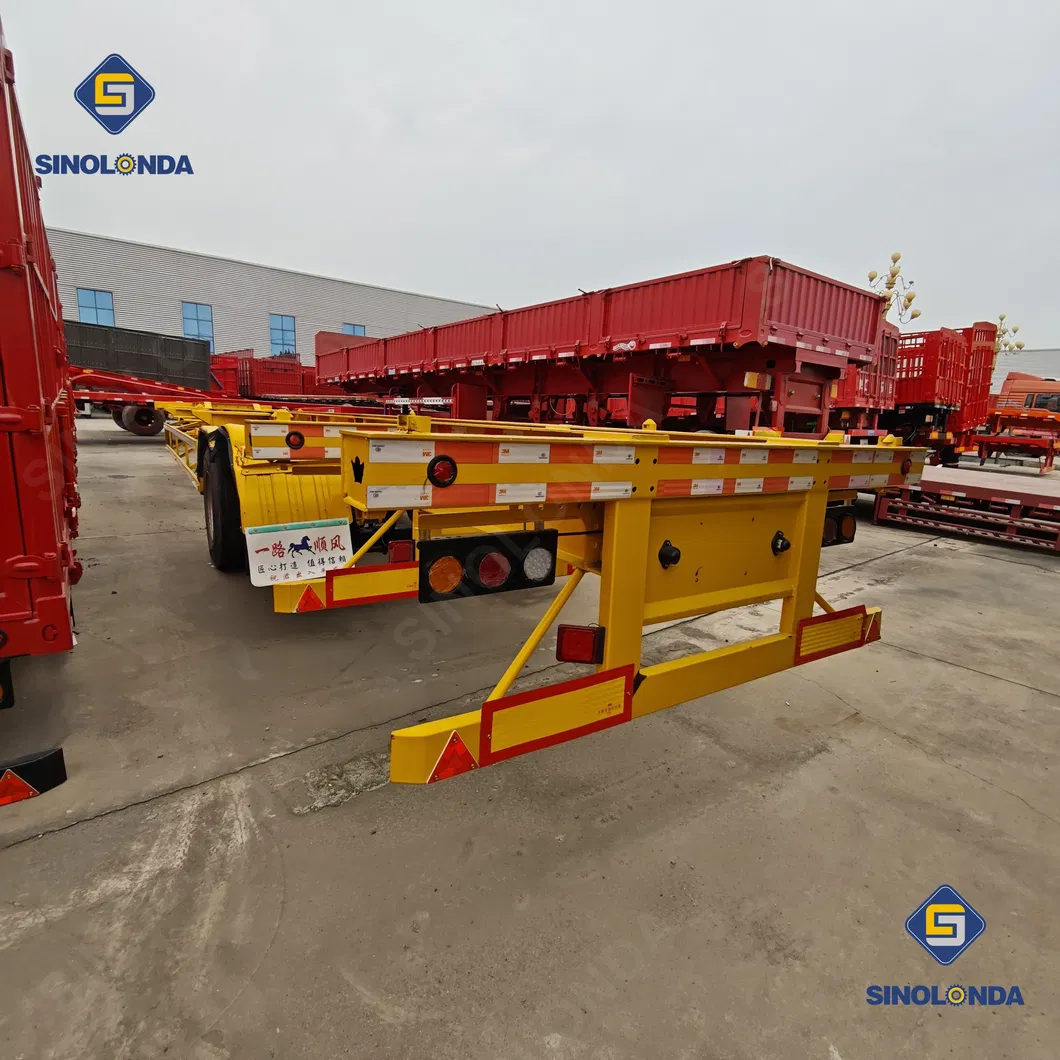

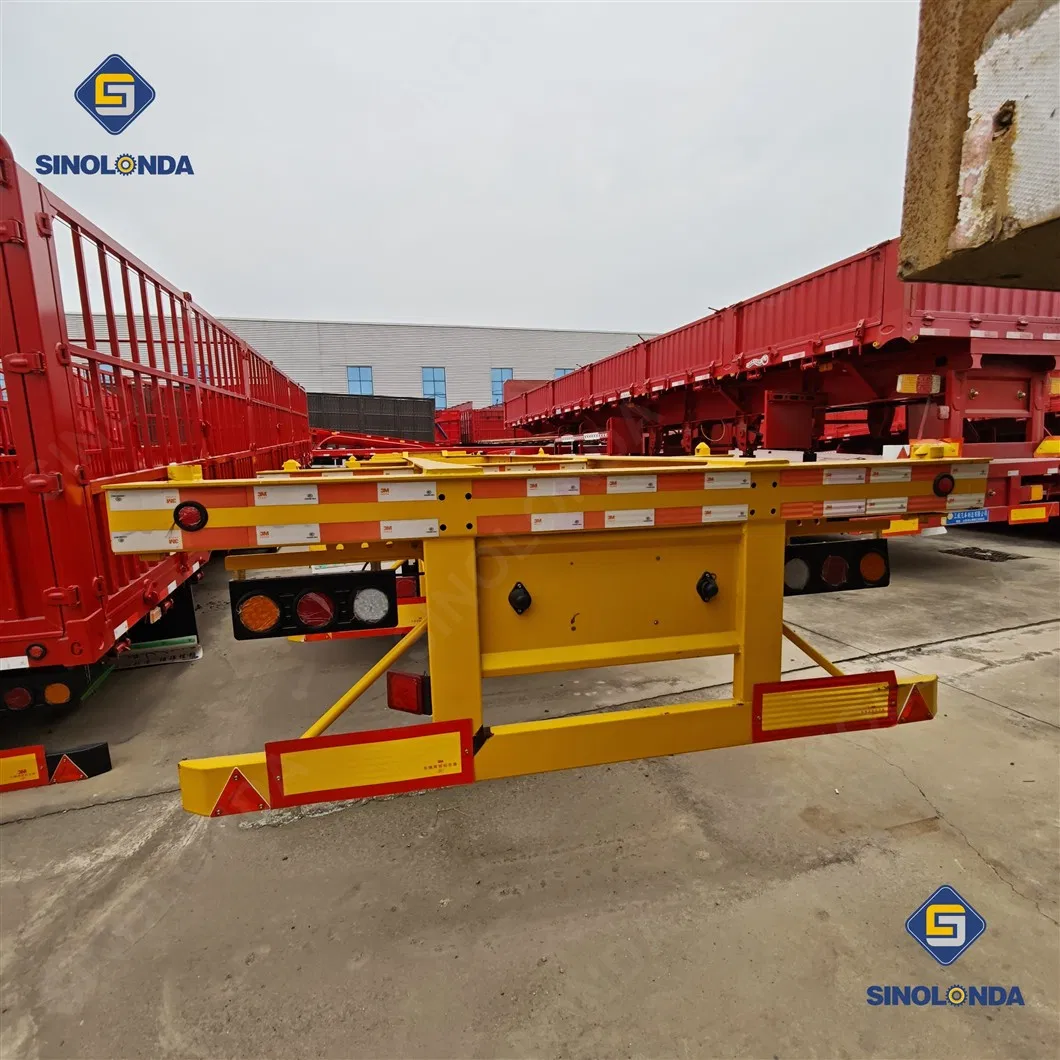

ABS Anti-Lock Braking System Skeleton Semitrailer for Container Transport 45 20 40 FT Container Trailer Heavy-Duty Low Bed Trailer with Anti-Lock Braking System
The skeletal semi-trailer (also known as a skeleton trailer or container chassis) is a type of freight trailer designed specifically to carry intermodal shipping containers. Unlike enclosed or flatbed trailers, it consists of a lightweight, open-frame structure - essentially a chassis with corner twist locks, suspension, wheels, and landing legs - without a solid deck or sides. Its primary purpose is to securely transport standardized ISO containers (20ft, 40ft, 45ft, etc.) between ports, rail terminals, and distribution centers.

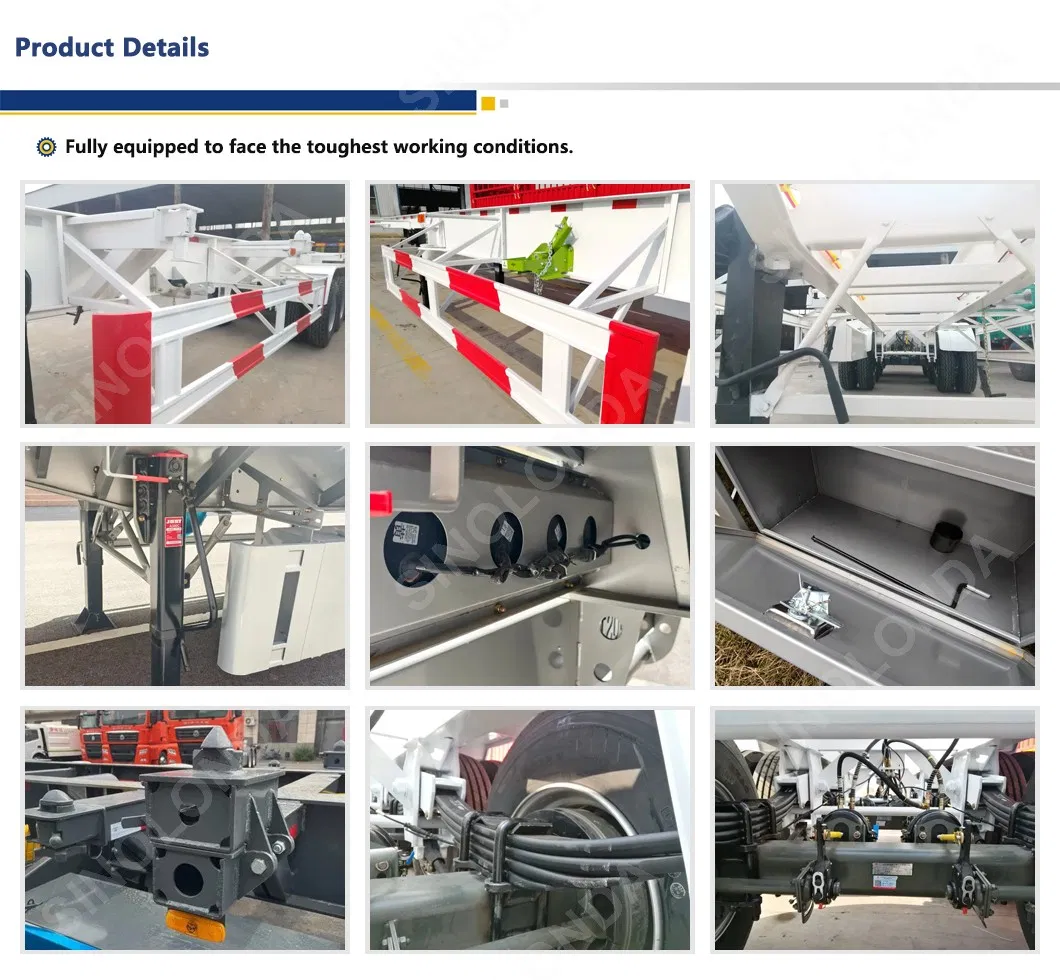

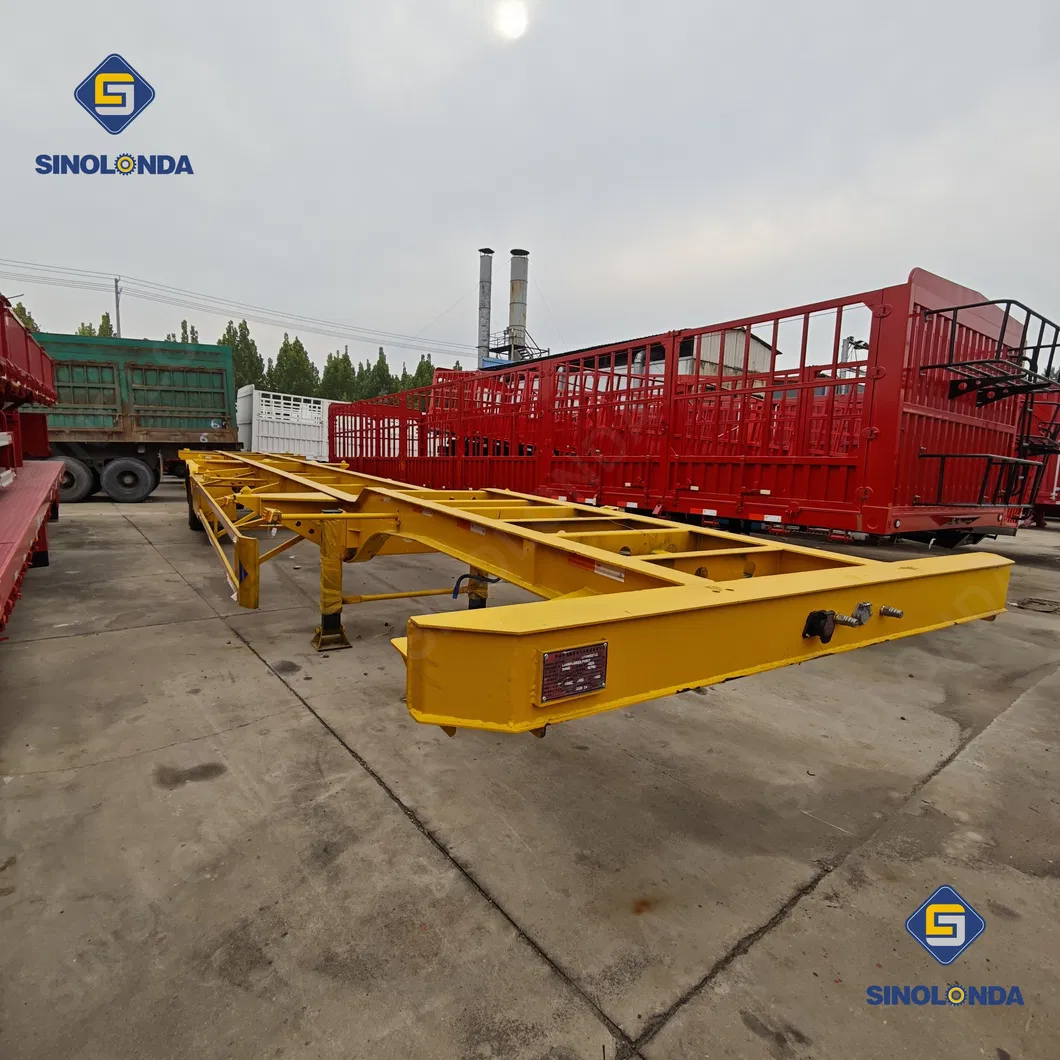

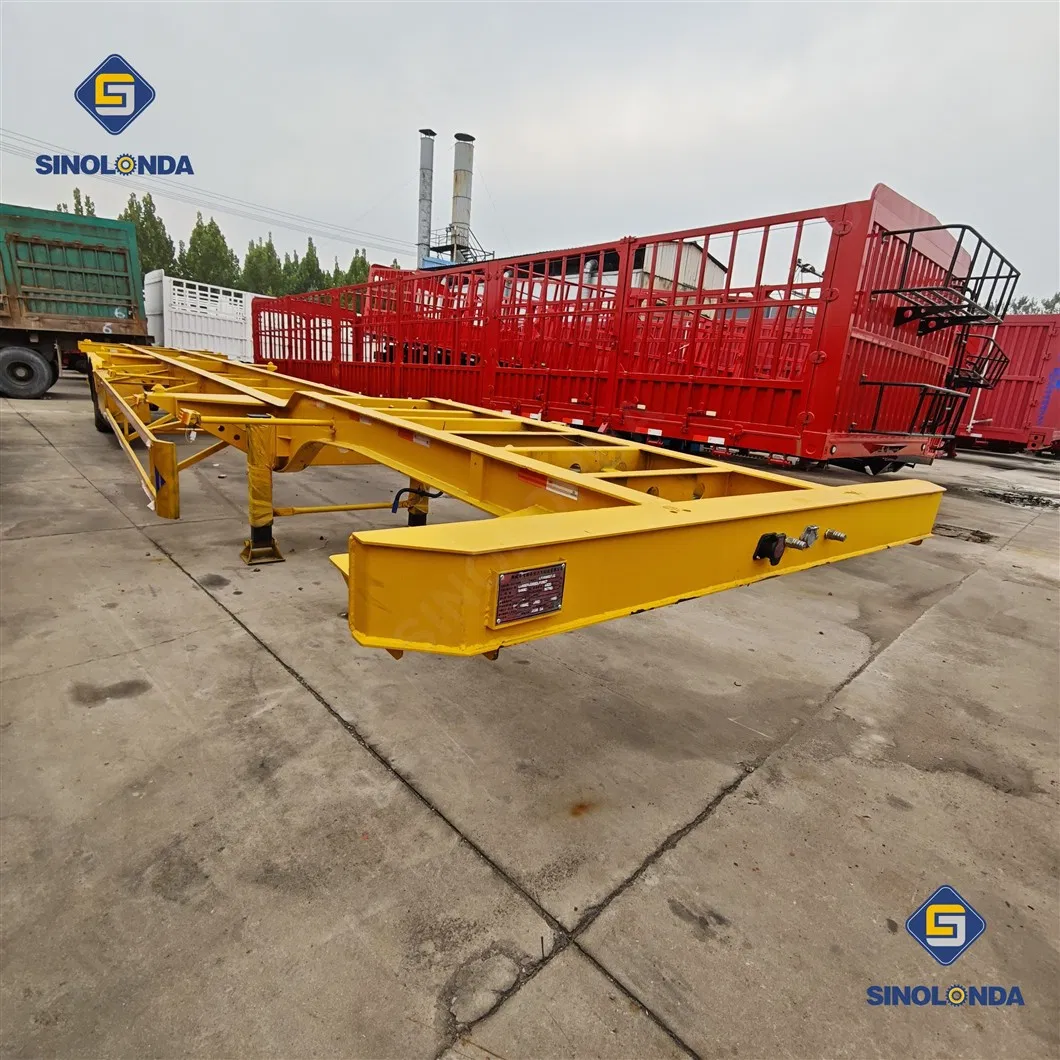

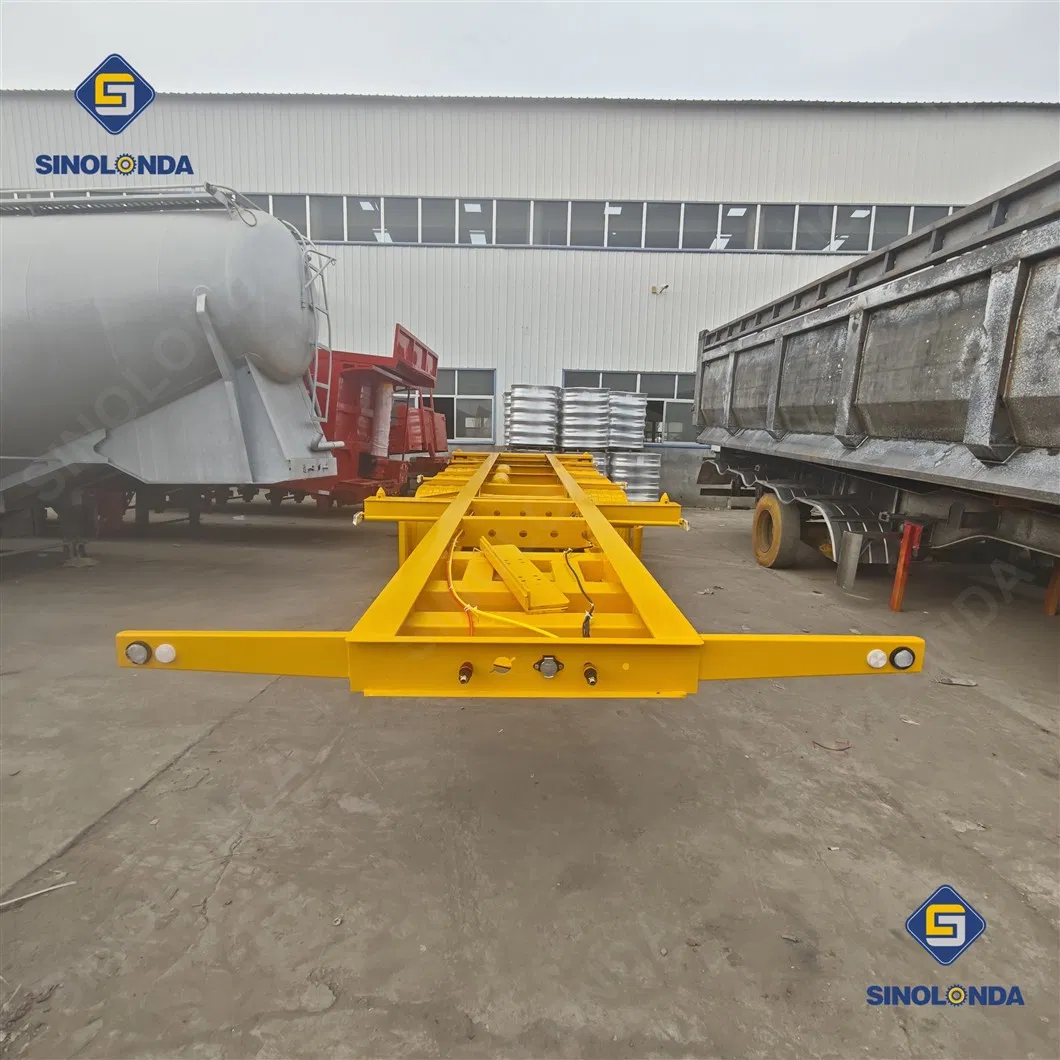

Product Display & Features
Lightweight Design: Constructed with high-strength steel or aluminum, the minimal frame reduces tare weight, allowing for higher payload capacity and improved fuel efficiency.
Rapid Container Handling: Equipped with standardized twist locks and corner guides for quick, secure container loading/unloading, minimizing turnaround time.
Intermodal Compatibility: Designed to handle containers transferred between ships, trains, and trucks, supporting seamless multimodal logistics.
Durability & Low Maintenance: Simple structure with fewer components reduces wear and maintenance costs. Reinforced cross members and kingpin area enhance longevity under heavy loads.
Versatility in Container Types: Can carry dry freight, refrigerated, tank, or open-top containers by adjusting locking positions and chassis configurations.
Maneuverability: Often equipped with a sliding tandem or lift axle to adjust weight distribution and improve handling under varying road regulations.
Cost-Effective Operation: Lower initial cost, reduced fuel consumption, and minimal upkeep contribute to a favorable total cost of ownership (TCO).
Product Parameters
2/3/4 Axle 20FT 40FT 45FT Skeleton Semi Trailer
Size
13000mm*2500mm*1550mm (Optional)
Payload
30ton, 40ton, 50ton, 60ton, 80ton
Main Beam
Top flange 10/12/14/16mm; Middle Flange 6/8/10/12mm; Bottom flange 12/14/16/18mm
Side Beam
16/18/20# channel steel (Q235) Or G shape side beam
Cross Member
8/10/12# channel steel (Q235)
Floor
2/3/4mm checkered plate
Axle
2/3/4 axle FUWA/BPW or factory brand 13T/16T
Suspension
Mechanical American type suspension or air suspension
Leaf Spring
10pcs*13mm*90mm or air bag
Tire
385/60R22.5, 12R22.5, 8/12/16pcs brand and model optional
Wheel Rim
11.75-22.5, 9.0-22.5, 8/12/16 Pcs brand and model optional
Kingpin
Jost brand 2/3.5" bolt-in king pin
Landing Gear
Jost or FUWA brand or local brand two-speed, manual operating, heavy duty 28T
Twist Lock
4/8/10/12pcs
Braking System
WABCO RE6 relay valve; T30/30 spring brake chamber; 40L air tanks
ABS
With

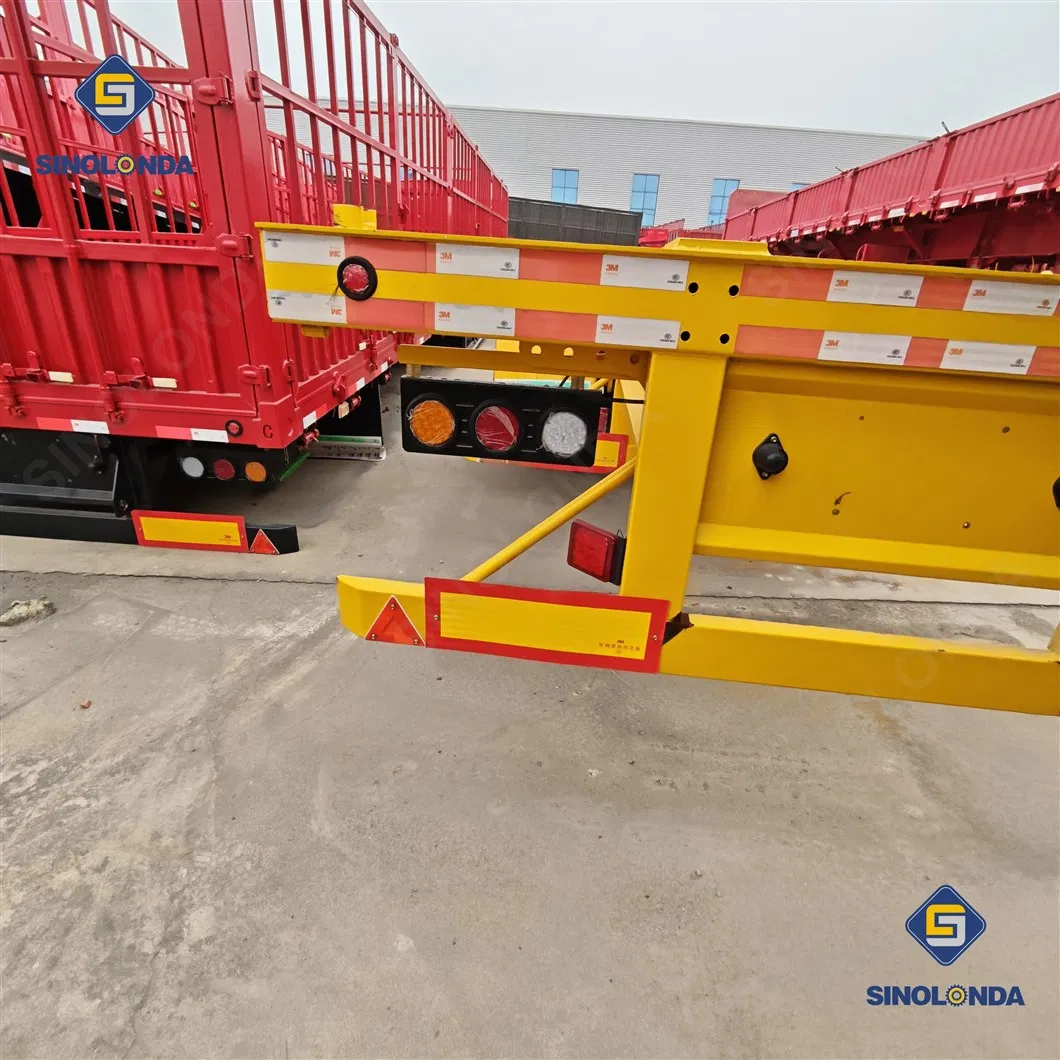

Light
LED 8 side lights, 2 rear lights, 2 width lamps
Painting
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories
One standard tool box, one spare tire carrier, one crank, one shaft head wrench, four side lights, two rear lights
Package
Nude spray wax or put in 40ft container
Product Advantages
Lightweight frame structure reduces dead weight, maximizes payload capacity, and cuts fuel consumption during transportation.
Quick container loading/unloading via twist locks; compatible with forklifts and container gantry cranes, slashing loading/unloading time.
Adaptable to 20ft, 40ft, and other standard containers; interchangeable with different tractors, meeting diverse logistics needs.
Reinforced steel frame with anti-corrosion coating ensures long service life, suitable for harsh road and working conditions.
Simple structure with fewer components, lowering maintenance frequency and operational costs.

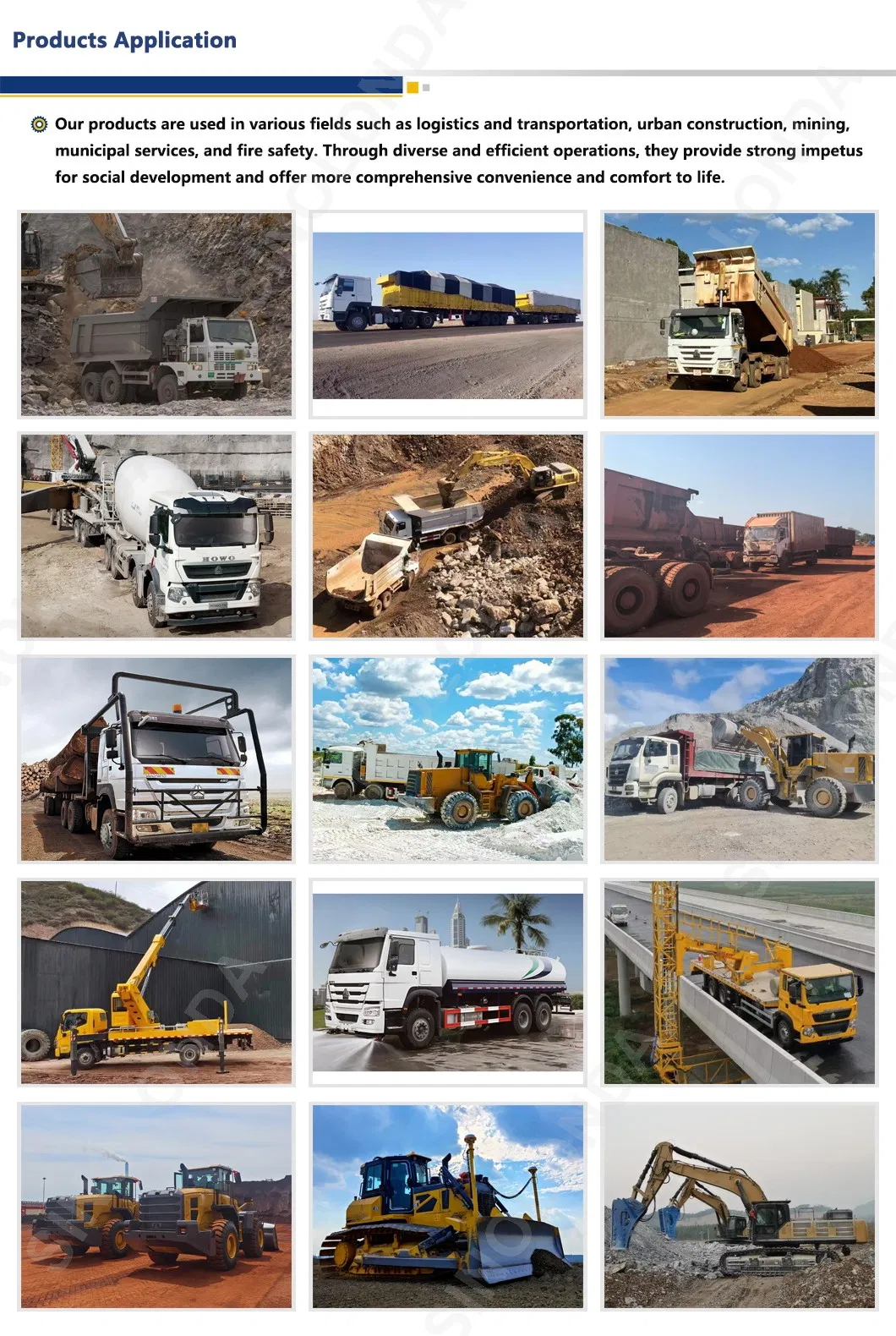

Product Uses & Application
Intermodal Logistics: Core equipment for sea-rail, road-rail intermodal transport, realizing seamless transfer of containers between ports, railways, and highways.
Port & Terminal Operations: Widely used for short-distance container haulage between port storage yards and cargo ships.
Long-haul Road Transport: Ideal for cross-city and cross-border transportation of standardized containerized goods (e.g., electronics, building materials, daily necessities).
Warehouse & Distribution Centers: Serves as a link for container loading/unloading and cargo transfer between warehouses and distribution hubs.

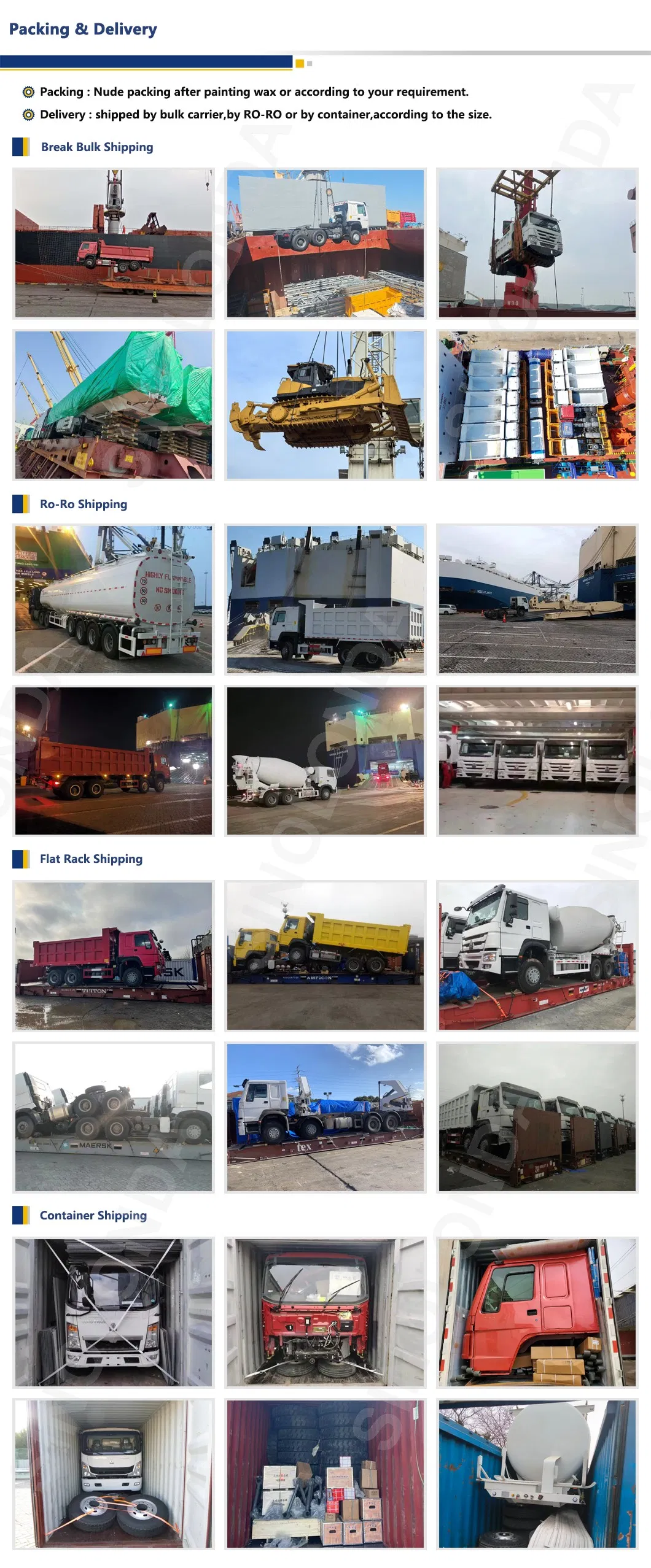

Packing & Delivery
Packing: Nude packing after painting wax or according to your requirement.
Delivery (Shipped by bulk carrier or by container, according to the size):
By Bulk Shipment, the truck is placed on the deck.
By Ro Ro Shipment, the truck is placed in the cabin.
By Flat Rack Container.
SKD or CKD in container.
Our Advantages
15+ Years of Manufacturing Expertise: Decades of experience in trucks, engineering machinery, and vehicle renovation, ensuring professional production control and industry insights.
Factory-Direct Pricing & Premium Quality Assurance: Leverage integrated manufacturing advantages to offer competitive factory prices without compromising on product reliability and performance.
Globally Recognized Certifications: Certified by SGS, CCC, and ISO, meeting international quality standards for seamless cross-border trade compliance.
Comprehensive After-Sales Support: Provide timely technical guidance, spare parts supply, and problem-solving services to safeguard global client operations.
Tailored Customization Solutions: Offer flexible product customization (specifications, configurations, branding) to match diverse market and project needs.
Global Market Reach (50+ Countries/Regions): Established mature export networks covering major global markets, with proven delivery and localization service capabilities.

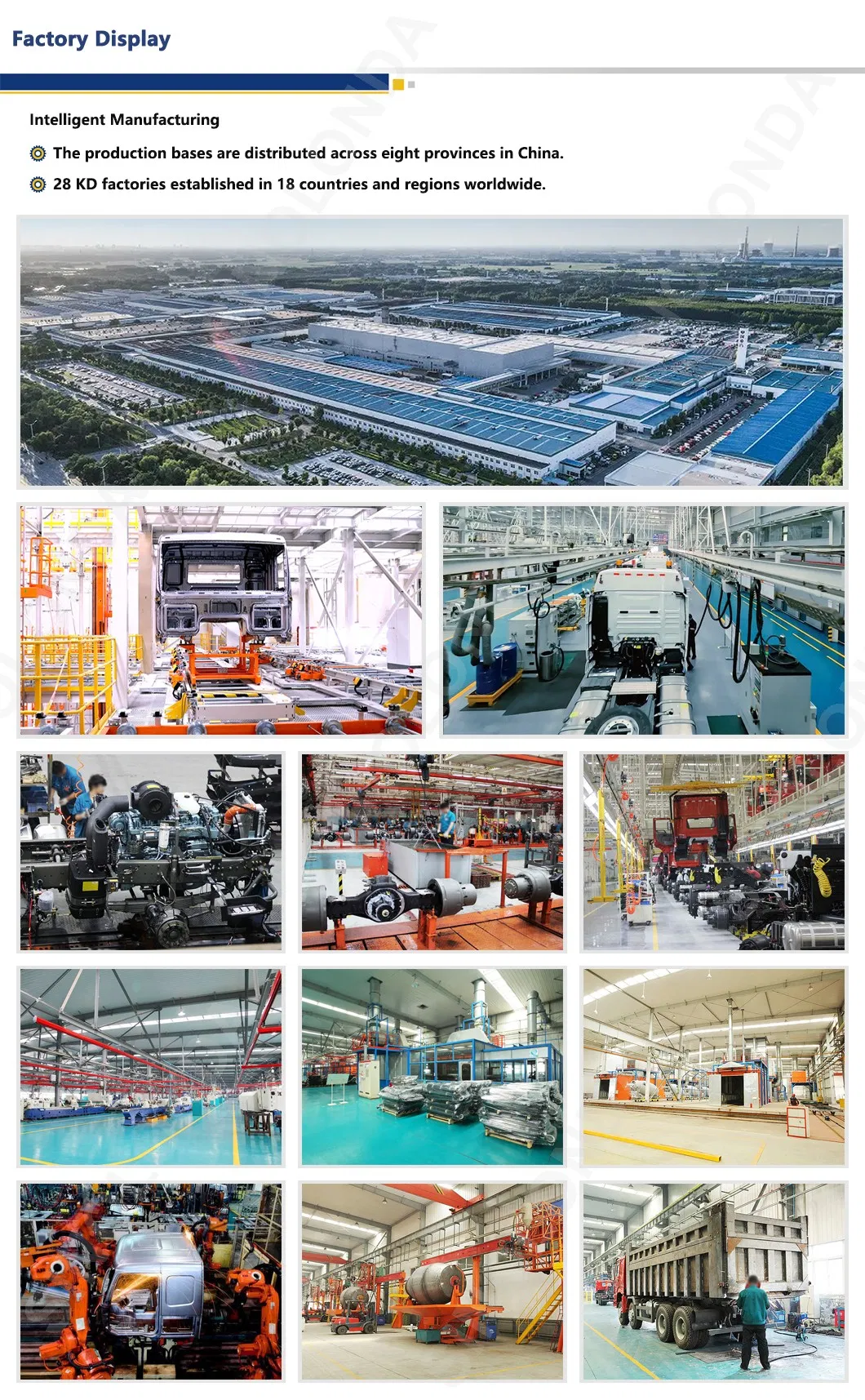

Factory Display
As a global commercial vehicle group, we possess world-class manufacturing capabilities, ranging from components to complete vehicles. With our foundation in major manufacturing hubs, we have vehicle and component factories in eight provinces across China.
Our facilities include Asia's longest vehicle assembly line, a body ABB robot digital welding line, the industry's largest 5,000-ton intelligent and digital stamping line, and an engine automation production line.
67 representative offices and branches; Over 400 permanent overseas sales staff.
More than 240 overseas dealers; Over 450 service and parts outlets.
28 KD factories established in 18 countries and regions worldwide.
Company Profile
We are a professional truck and machinery import and export enterprise with over 15 years of industry experience. We specialize in trucks (Tractor, Dump Truck, Cargo Truck, Mixer Truck, Water Truck, Oil/Fuel Tank Truck, Garbage Truck, etc.), trailers (Flatbed Semi-Trailer, Container Semi-Trailer, Low Flatbed Semi-Trailer, Tank Semi-Trailer, etc.), construction machinery (Excavator, Wheel Loader, Bulldozer, Grader, Road Roller, etc.), and spare parts (Engine Parts, Gearbox Parts, Axles Parts, Cab Parts, Clutch Parts, Chassis Parts). We have established cooperative relationships with leading Chinese manufacturers. With global certifications (SGS/CCC/ISO), highly competitive factory prices, customized services, and comprehensive after-sales support, we provide reliable products to more than 50 countries and regions worldwide, serving as a reliable bridge connecting Chinese manufacturing with the global market. Our trucks and construction machinery are mainly exported to the Middle East, Africa, Southeast Asia, Central Asia, and South America.
Main Products
Commercial Vehicles
Medium and Heavy-Duty Trucks: Tractor trucks, dump trucks, cargo trucks, special vehicles (mixer trucks, refrigerated trucks, water sprinklers, oil tankers, garbage trucks, sweepers, road clearance trucks, aerial work platforms, ambulances, fire engines, etc.)
Light Trucks: Cargo trucks, van trucks, dump trucks, truck-mounted cranes trucks, mixer trucks, water /sprinkler trucks, garbage trucks, road sweeper trucks, etc.
Semi-Trailers: Dump semi-trailers, flatbed semi-trailers, skeleton semi-trailers, sidewall semi-trailers, van semi-trailers, low bed semi-trailers, oil tank semi-trailers, bulk cement tank semi-trailers, etc.
Construction Machinery
Excavators, loaders, bulldozers, motor graders, rollers, asphalt pavers, concrete pump trucks, cranes, pile drivers, drilling rigs, forklifts, etc.
Generator Set
Diesel Generators, Electric Generators, Emergency Power Systems, Industrial Generators, Portable Generators, Power Generators, Single-Phase Generators, Standby Generators, Stationary Generators, Three-Phase Generators.
Spare Parts Supply
Provide a full range of genuine and high-quality aftermarket spare parts that match the brands of our main vehicles. Establish a comprehensive spare parts supply chain and warehousing and logistics system to ensure rapid response to customer needs.
Warranty Policy
12 Months quality guarantee or within 100,000km, whichever comes first.
Other spare parts could be supplied by OEM at cost prices.
Regular callback to monitor the vehicle's working status.
Overseas engineers are always ready to deal with unexpected technical needs.
After-Sales Service
We are committed to providing customers with a more convenient, efficient, and high-quality value-added service experience, embodying a strong sense of responsibility and mission towards complete vehicle after-sales service.
Spare Parts Delivery Terms
Upon urgent requests, compensated parts will be sent via international couriers (DHL, TNT, UPS, FedEx) arriving in 5-7 days.
For regular claims, parts are shipped free of charge alongside the next equipment shipment.
Out-of-Warranty Support
A list of recommended 2-year wearing parts is provided upon purchase at factory direct prices.
We collaborate to establish regional spare parts warehouses for quick local sourcing.
Technical Support Service
One set of maintenance tools and manual books is delivered with each vehicle.
Guaranteed response within 36 hours for troubleshooting, maintenance solutions, or spare parts procurement.
Free product operation, engineering, and maintenance training in China. Technical training on-site is available for large orders.
According to clients' requirements, we can customize different loading weight and volume.
Frequently Asked Questions
Are you a manufacturer or a trading company?
Yes, we have our own workshop and have been engaged in the truck and trailer export business for more than 15 years. Our manufacturing standard is highly recognized both domestically and internationally.
What is your minimum order quantity?
A minimum order of one unit is available. For bulk orders, we will gladly offer favorable quantity discounts.
Can you accommodate custom designs and configurations?
Absolutely. We accept customized truck and semi-trailer designs tailored to your specific requirements, local regulations, and drawings.
What are your accepted payment terms and delivery times?
We accept T/T (30% deposit + balance payment before delivery) and L/C. We standardly offer FOB, CIF, or CNF trade terms. Delivery time generally ranges between 25-45 working days after receiving the initial payment, depending on the models and quantities.
What product certifications do you provide?
Our trailers and machinery meet global compliance standards. We possess certifications such as ISO, OTTC, EAC, GCC, and CE. Third-party inspections from entities like SGS or BV are also fully supported.
What is the warranty policy for your vehicles?
We provide a 12-month quality guarantee (unlimited mileage) for our commercial trucks and a 10-month warranty for our semi-trailers. We also coordinate with service points globally to provide quick support.
